PCPS adapter for Forster Co-Ax

Description

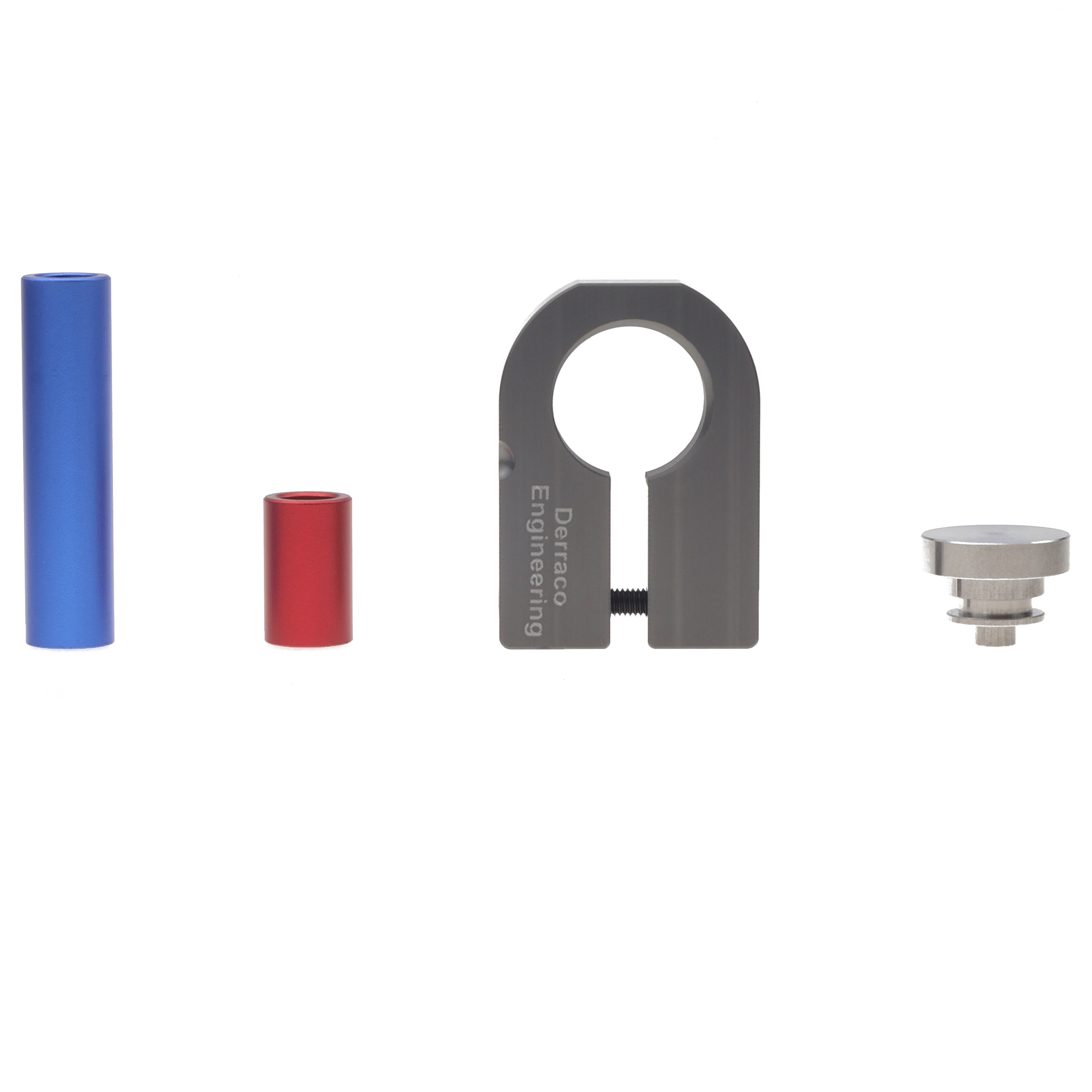

This adapter set will allow PCPS priming system to work on your Co-Ax press.  Quality parts are CNC milled, and type 2 color is hard anodized. Anvil is made of 303 stainless steel.

1.  The red and blue bushing should be installed on the verticle bar below the platform. Install the Red Short one first, then the blue long one. These bushings will limit the travel of the press preventing the lever’s interference with the primer tube.
2. For the split ring, the detent cut should face upwards.
3. Please use 308 jaws to install the anvil.
4. Remove the horizontal bar on top of the Co-Ax rail axials when using PCPS.

Here is an excellent and clear review of it being used on YouTube by Ultimate Reloader.

Derraco Engineering: Precision Competition Primer Seater (And MORE) (youtube.com)
