Description
Thank you for supporting a small (but growing) business.

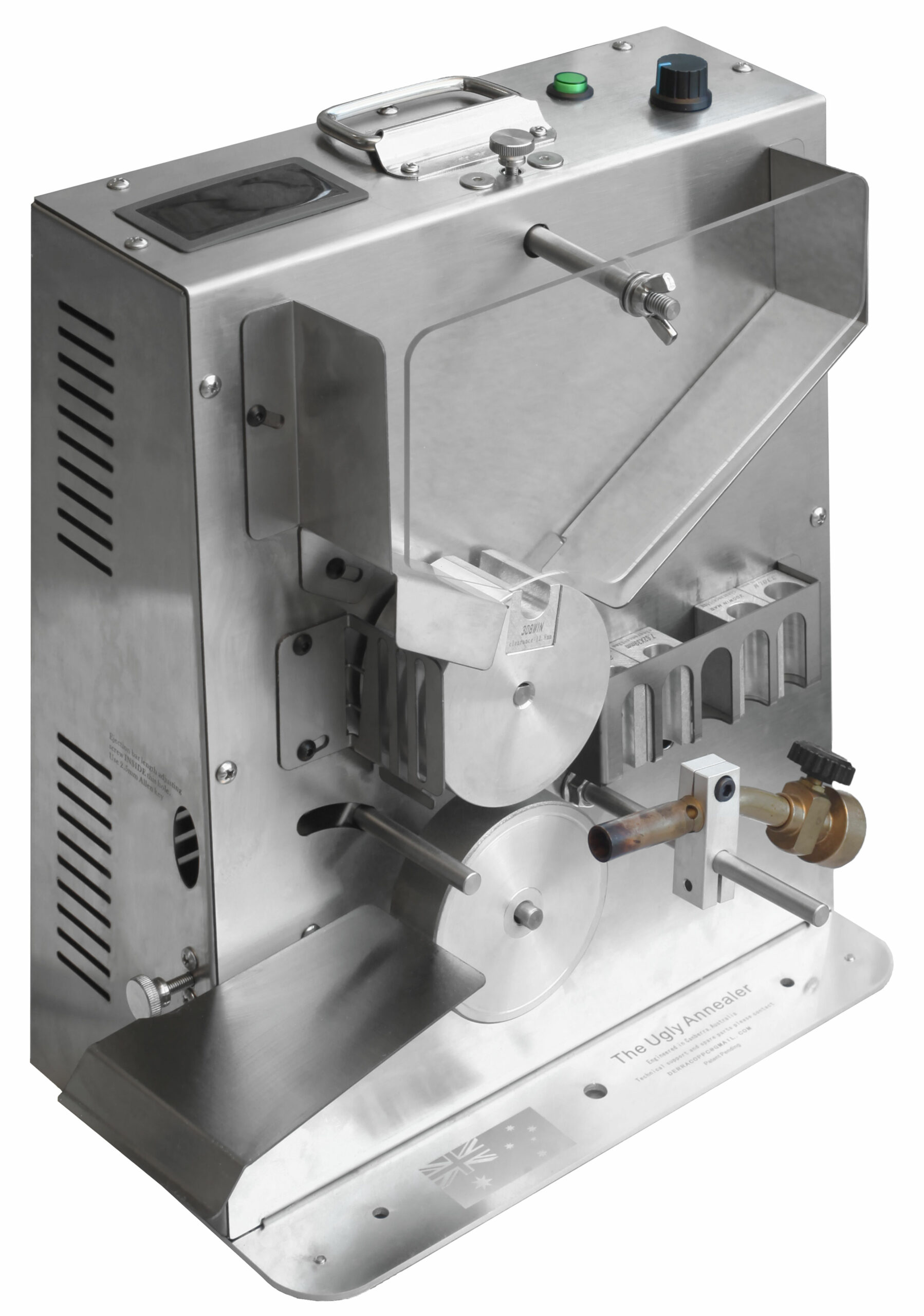

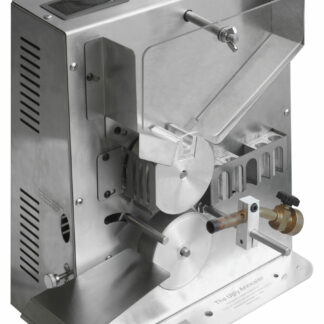

Machine case made of #201 stainless steel. The clear front panel is impact-resistant polycarbonate ( it’s almost bulletproof). It costs 3 times as much as acrylic. I wanted it as tough as I could get because I dropped my acrylic prototype and broke it. Yours shouldn’t!!

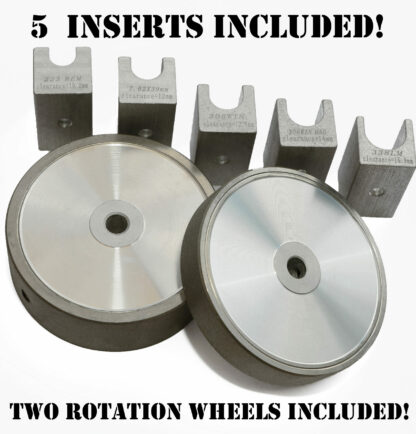

The standard package includes 5 CNC milled caliber conversion inserts covering 223rem and its family, 7.62*39mm and its family, 308win and its family, 300winmag and its family, 338LM and its family. .50BMG when without inserts.

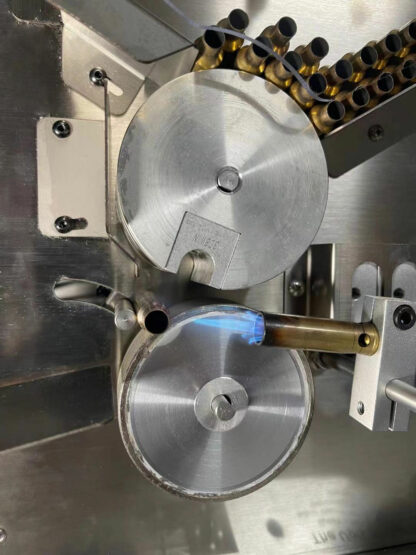

The rotation wheels should last a lifetime because the aluminum is heat resistant. and I’ve given you two(15mm&25mm). I want you to have everything you need to get started without having to spend extra money. The wheels are also nickel coated with natural diamond grit for a permanent nonslip coating.
The machine comes with a CNC-made adjustable clamp compatible with a gas pencil torch with OD 12.70mm-13.0mm.
A universal propane bottle holder is also included.
We also included a set of high-quality Allen key sets and a bolt pouch as a gift to the annealer buyer.
The Allen keys provided are outstanding quality American-made or Taiwan-made. It doesn’t cost much extra to give you really good quality Allen keys so we have.

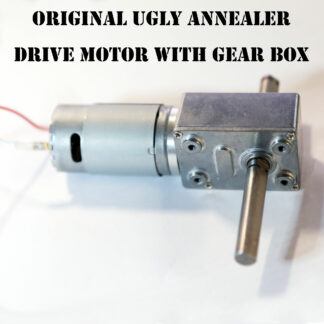

We have used an appropriately powered motor for the machine, and based on the quality, estimate you should be able to anneal at least 900,000 brass (at 10 brass per minute) or 1500 hours run time (at max speed without stalling) before replacement is needed.
What’s inside of the package:
-
1 * assorting box with spare spring, screw, c-clip
-
1* set of quality Allen keys (either Chewren made in Taiwan, Hafu made in Germany, or Bondhus made in the USA)
-
1* set of 5 CNC-made caliber inserts shown in the photo. compatible with common calibers 223REM, 7.62*39mm,308WIN, 300WM,338LM
-
1* Universal gas bottle stand
-
1* Gas nozzle clamp and 8mm axial (torch not included)
-
1* Polycarbonate guide panel and 10mm axial.
-
1* Brass rolling ramp
-
2* Nickel diamond coated wheel, in 15mm and 20mm thickness
-
1* CNC-made catching wheel with 50bmg slot
-
1* User instruction
-
1* Power adapter with New Zealand power plug
-
1* the Ugly Annealer main body with the bottom plate
-
1* bolt pouch
Warranty: lifetime warranty on material and workmanship, not including wearing.
FAQ : I often get asked about whether the Ugly annealer can do different calibres. Yes – just about every calibre if it can fit in a suitable insert. Each Insert is based off a parent calibre and has a clearance suitable.
ie. 223 is 10.2mm clearance
7.62 x 39mm is 12mm clearance
308 is 12.8mm clearance
300 Win Mag is 14mm clearance
338LM is 15.9mm clearance
Introduction of the Ugly annealer patent pending (youtube.com)
The Ugly Annealer set up patent pending – YouTube
The Ugly annealer is CE ( compliance with the relevant EU legislations ) and FCC (compliance with Federal Communications Commission electrical radiation limits) tested and certified.
