3 sets of UGLY SRT Combo deal! Shoulder Referenced Brass Case Trimmer (GEN 2)

Original price was: $255.00.Current price is: $174.95.

This link is for 3 complete SRT sets!

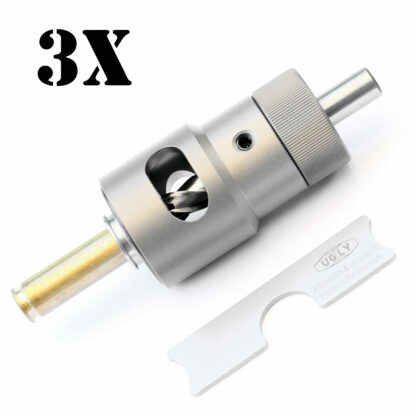

Complete content list of each Ugly SRT set:

1 pc Main body fitted with bearing

1 pc Caliber collet insert at buyer’s choice

1 pc M2AL-HSS milling blade cutter

1 pc Lock N Adjust ring

1 pc Collet removal tool

1 pc Collapsible package with Vpi rust inhabitant paper

Please advise collet insert No. when you put the order! We will contact you if a collet number is not provided.

SKU: N/A Category: Tags: ,

Description

About Ugly SRT(Gen 2)

  • Main body: Ugly SRT main body is made of 6061 aircraft grade aluminum alloy (USA-made round stock), hard anodic oxidation coated for maximum wear resistance. CNC lathe milled to be within 0.01mm tolerance. A high-grade French-made AB SKF deep groove ball bearing is press-fitted to the main body

    and provides a very smooth trimming operation. This bearing retails for more than $20 in Australia. Brass tip set screws were used!

  • Snap-fit caliber collet insert：Made of 303 stainless steel, CNC lathe turned with high accuracy. This collet insert can be removed easily with our insert removal tool. The collet can be installed easily with thumb pressure. No.0 collet blank is made of 12L14 easy machining steel for gunsmith or DIY use. 12L14 steel is NOT stainless but it is more friendly to reamers on a manual lathe.
  • Milling blade cutter:The milling blade is made of M2AL HSS, extremely sharp and durable. The milling blade and shank are centerless ground to slide fit shank hole with only 0.01mm in the gap. Therefore, the cross-section cut on the brass will be clean and smooth. The trimmer won’t wobble when in the rotation due to high concentricity.
  • Innovative Lock n Adjust ring:Each set comes with an adjustable ring. Users can use a feeler gauge or simply a piece of paper for precise trimming depth adjustment. If the user wishes to change caliber, this adjustment ring can be locked onto the cutter shank. The cutter can be installed back into the main body to repeat the previous settings without any resetting needed.
  • Collet removal tool:Made of 304 stainless steel.
  • How to set up and use the UGLY SRT shoulder referenced brass case trimmer (youtube.com)





Additional information

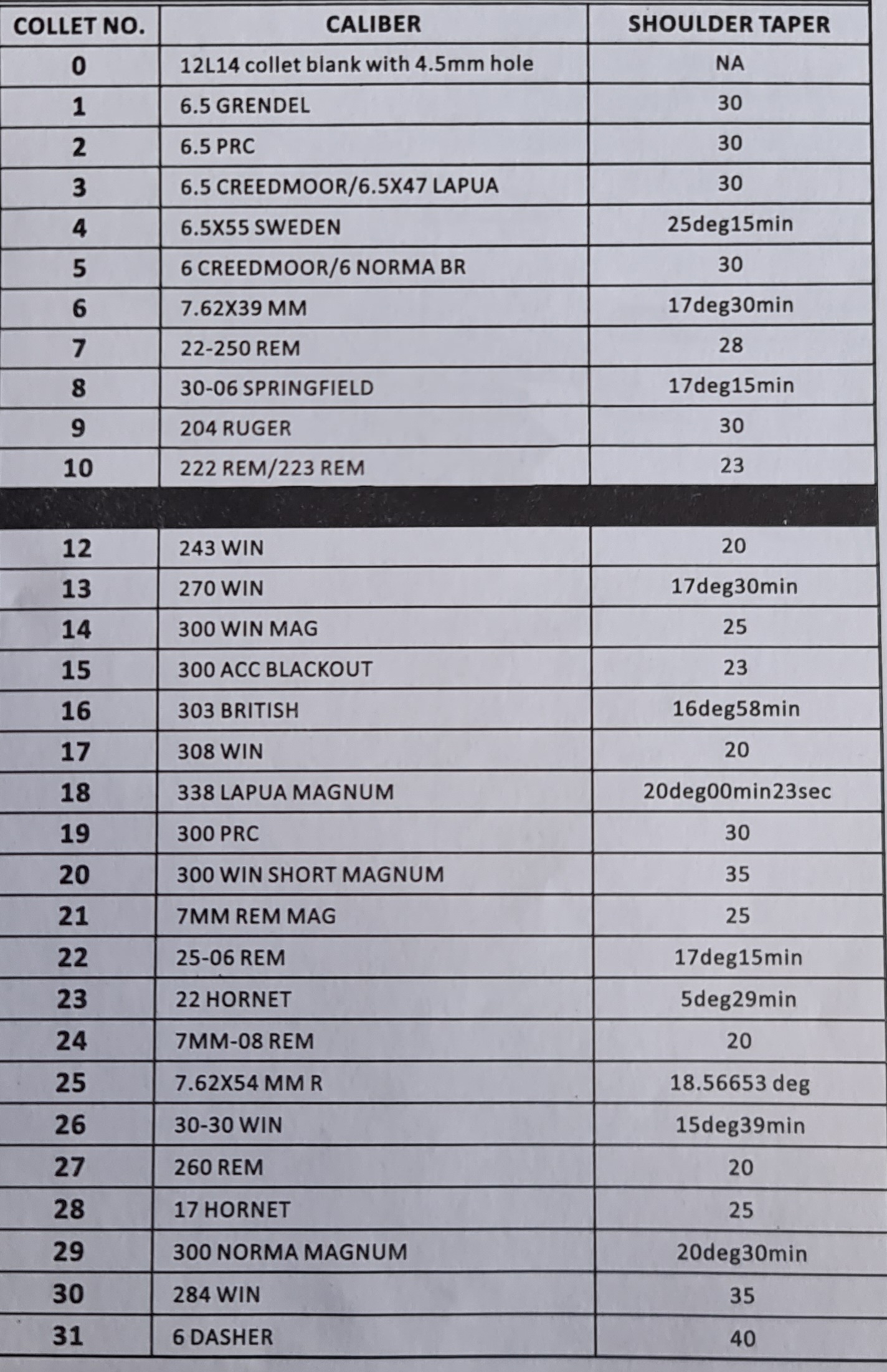

1st collet in what #?

#0, #1, #2, #3, #4, #5, #6, #7, #8, #9, #10, #12, #13, #14, #15, #16, #17, #18, #19, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #30, #31, #32, #33, #34
2nd collet in what #?

#0, #1, #2, #3, #4, #5, #6, #7, #8, #9, #10, #12, #13, #14, #15, #16, #17, #18, #19, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #30, #31, #32, #33, #34
3rd collet in what #?

#0, #1, #2, #3, #4, #5, #6, #7, #8, #9, #10, #12, #13, #14, #15, #16, #17, #18, #19, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #30, #31, #32, #33, #34
